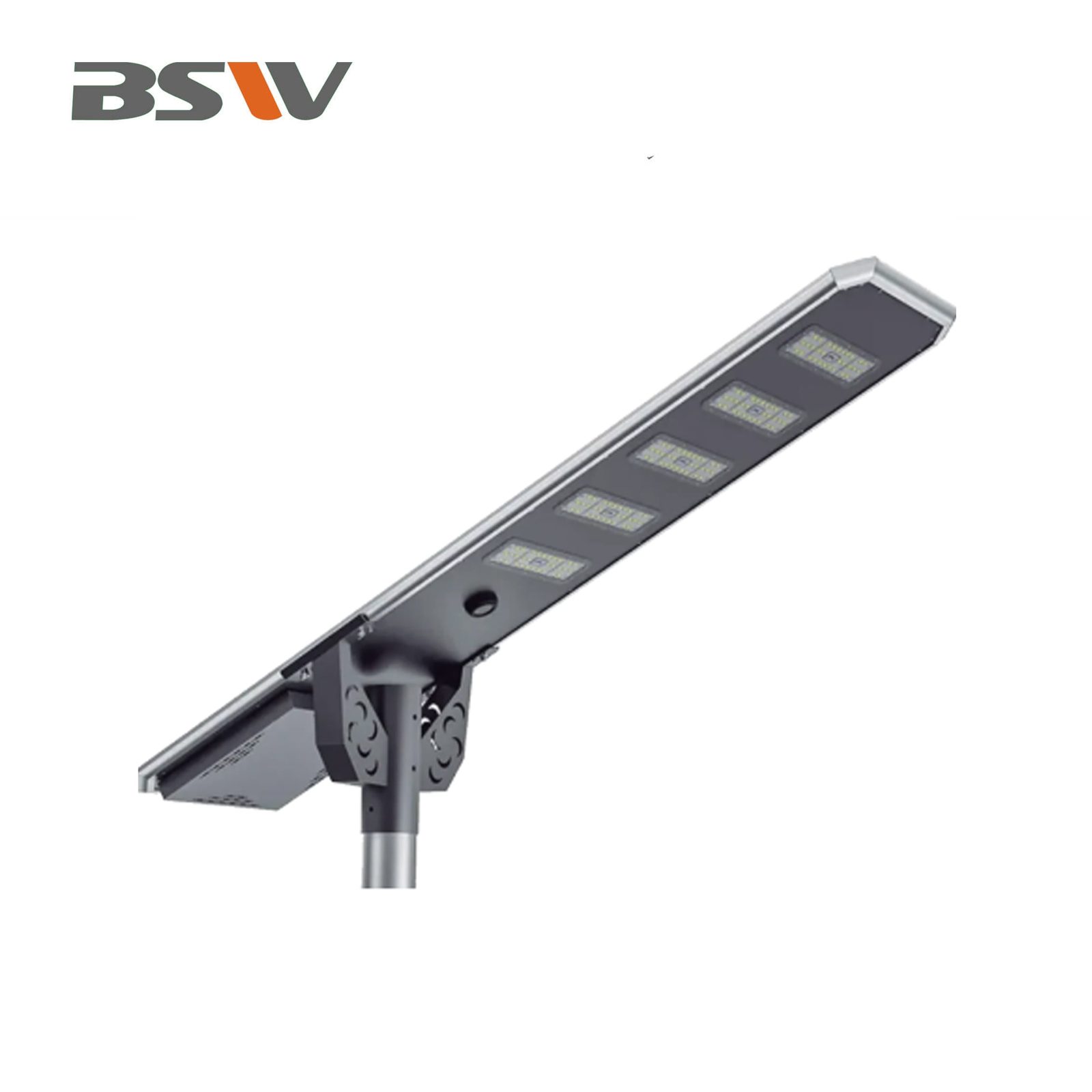

Panel, battery, controller and LED luminaire integrated into one die-cast aluminum body — 20W to 400W. Manufactured in-house by BSW since 2005 and delivered to 55+ countries for municipal, rural and commercial projects.
Get All-in-One Solar Light Quote WhatsApp: +86 152 9848 1418From 20W pathway and courtyard models to 400W heavy-duty units for 12m municipal poles. ABS economy series available for high-volume village programs; die-cast aluminum series for municipal tenders.
| Segment | Power Range | Best For |
|---|---|---|
| Compact series | 20W–40W | Pathways, courtyards, gardens, low-traffic village lanes |
| Standard series | 60W–100W | Village roads, urban side streets, parking lots |
| Municipal series | 120W–200W | Urban main roads, municipal tenders, 8m–10m poles |
| Heavy-duty series | 300W–400W | Highways, industrial areas, 12m–15m poles |
| Component | Specification |
|---|---|
| Solar panel | Monocrystalline, high-conversion cells, 40W–480W by model |
| Battery | Grade-A LiFePO4 (2000+ cycles at 80% DoD), 12.8V/25.6V systems |
| Controller | MPPT with TCS temperature control and adaptive lighting (ALS-style power management) |
| LED | Bridgelux-class chips, 160–200 lm/W, optical lens optics |
| Sensor | Radar motion sensor: full brightness on detection, dimmed mode otherwise |
| Housing | Die-cast aluminum, IP66, hot-dip galvanized bracket (ABS economy series optional) |
| Working temperature | Typ. -20°C to +60°C |
| Control | Remote control + optional IoT/GPRS remote monitoring platform |
No trenching or cabling — fastest path to lighting off-grid communities and rural access roads.
Radar motion sensing and adaptive dimming profiles for urban streets and public squares.
Uniform optics and motion-triggered brightness for security lighting in parking areas and campuses.
C5-grade anti-corrosion options proven in Philippine and Indonesian island deployments.
Adjustable-arm models retrofit onto existing 4m–12m AC street lighting poles.
OEM branding, custom colors and logo printing; ABS economy series for volume markets.
Large-scale municipal rollout of 80W all-in-one units across island communities, engineered for typhoon-prone coastal conditions.
Signature Sword-model all-in-one units deployed across urban and peri-urban road networks.
Wind-solar hybrid street lights with 300W wind turbines for high-temperature desert highways.
Standard configuration supports 2–3 consecutive rainy days. For monsoon regions we configure 4–5 days autonomy with larger panel and battery — tell us your location and we size it accordingly.
Yes. Our adjustable-arm models mount on existing 4m–12m poles, making them ideal for upgrading old AC street lighting to solar without replacing poles.
LED source 50,000+ hours; LiFePO4 battery 5–8 years depending on climate; housing design life 15+ years. Batteries are replaceable in the field.

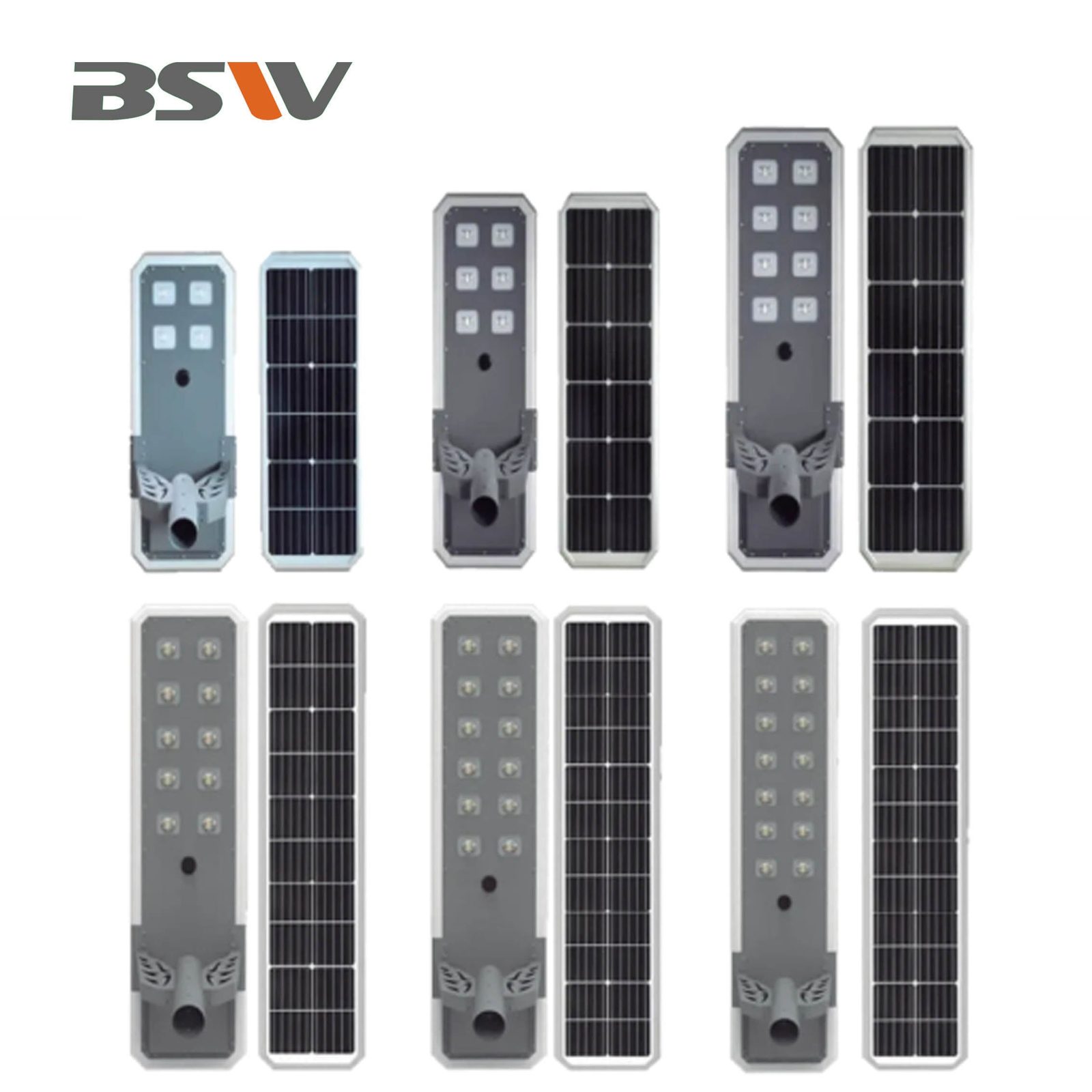

Our all-in-one family covers 20W to 400W, from pathway and village models to heavy-duty municipal units for 12m poles.
Sample orders of 1–10 units are accepted. Standard models ship in 7–15 working days; custom configurations take 20–30 days.
Include wattage, quantity, mounting height and project location. DIALux simulation provided free for projects above 100 units.
